Get Started with the Microvisor Nucleo Development Board


(warning)

Microvisor Public Beta

Microvisor is in a pre-release phase and the information contained in this document is subject to change. Some features referenced below may not be fully available until Microvisor's General Availability (GA) release.

The Microvisor Nucleo Development Board (NDB) is a complete evaluation and development platform for Microvisor and the STMicroelectronics STM32U585 microcontroller. It is based on the familiar STMicroelectronics Nucleo form-factor. You will use it to explore the Microvisor platform, and to develop and prototype your IoT applications.

This Quick Start Guide will help you get your NDB powered, connected, and running a sample application that you will deploy to the board over the air via the Microvisor cloud.

The Microvisor Nucleo Development Board.

New to Microvisor?

new-to-microvisor page anchor

Take a moment to learn what Microvisor is all about, its ARM TrustZone-based secure architecture, and the benefits it will bring to your IoT application.

What's in the box?

whats-in-the-box page anchor

Your NDB, which has been pre-registered with your Twilio account, comes with the following items:

  • A USB-C cable to power the NDB.
  • A USB AC power adapter.
  • A Quectel EG21-G global cellular module PCIe card.
  • A cellular antenna and connector cable.
  • A KORE Wireless Super SIM.
  • A Micro-USB cable for provisioning WiFi credentials.
(warning)

Warning

The supplied AC adapter is optional, but do not run the Nucleo board from a USB port on your computer if it is not able to deliver at least 15W (3A at 5V) peak. The Nucleo board draws more power than some older computers' USB ports are usually able to deliver.

(information)
(warning)

Warning

Microvisor currently supports only Super SIM for cellular connectivity. We expect to enable support for other SIMs in a future release.


Your NDB comes with a KORE Wireless Super SIM that has been set up for you to provide you with global cellular connectivity. The SIM has already been fitted into your board, so you are ready to go.

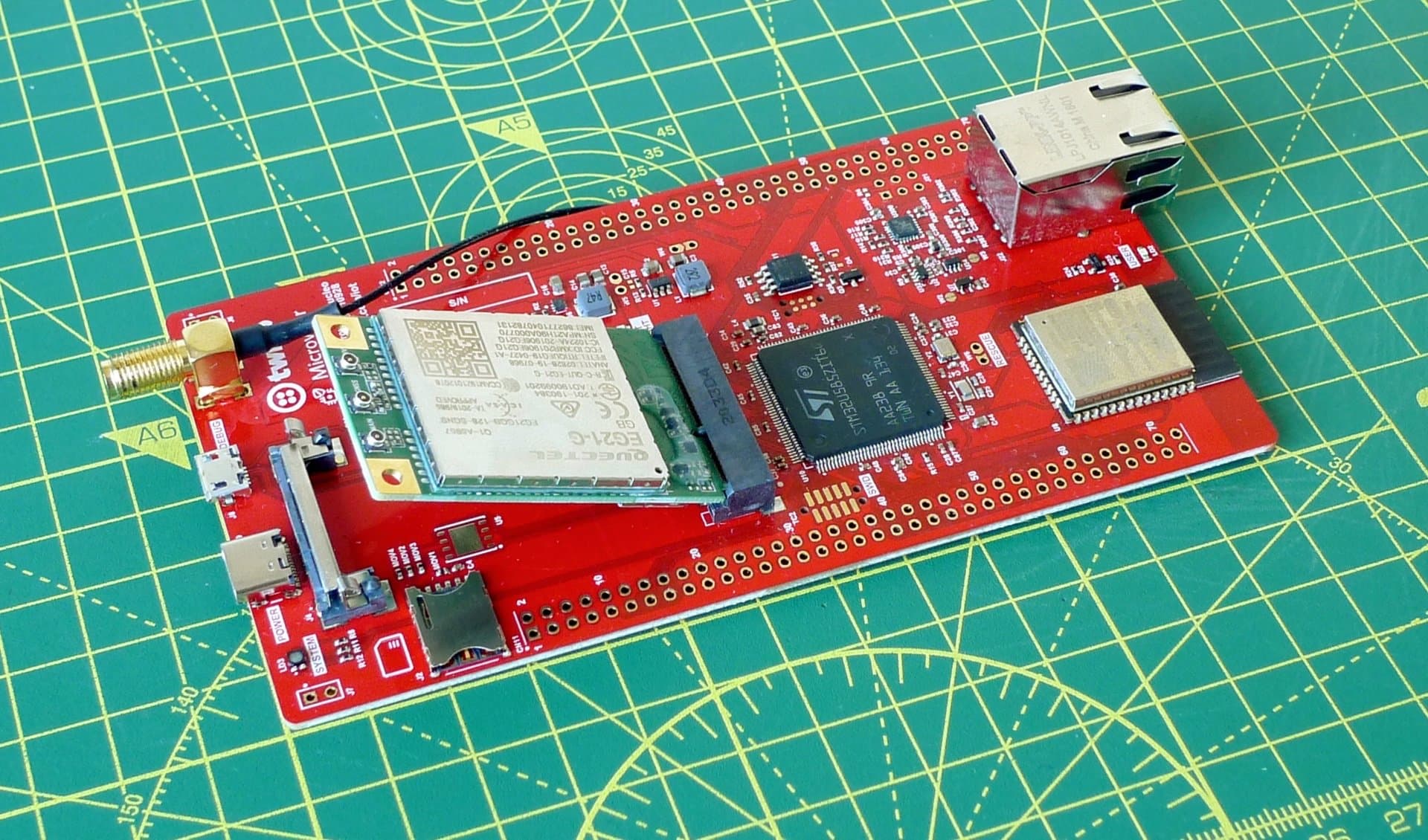

  1. Unpack the cellular modem card and fit its connector into the slot on the NDB:

    Slot the modem into the M2 connector.

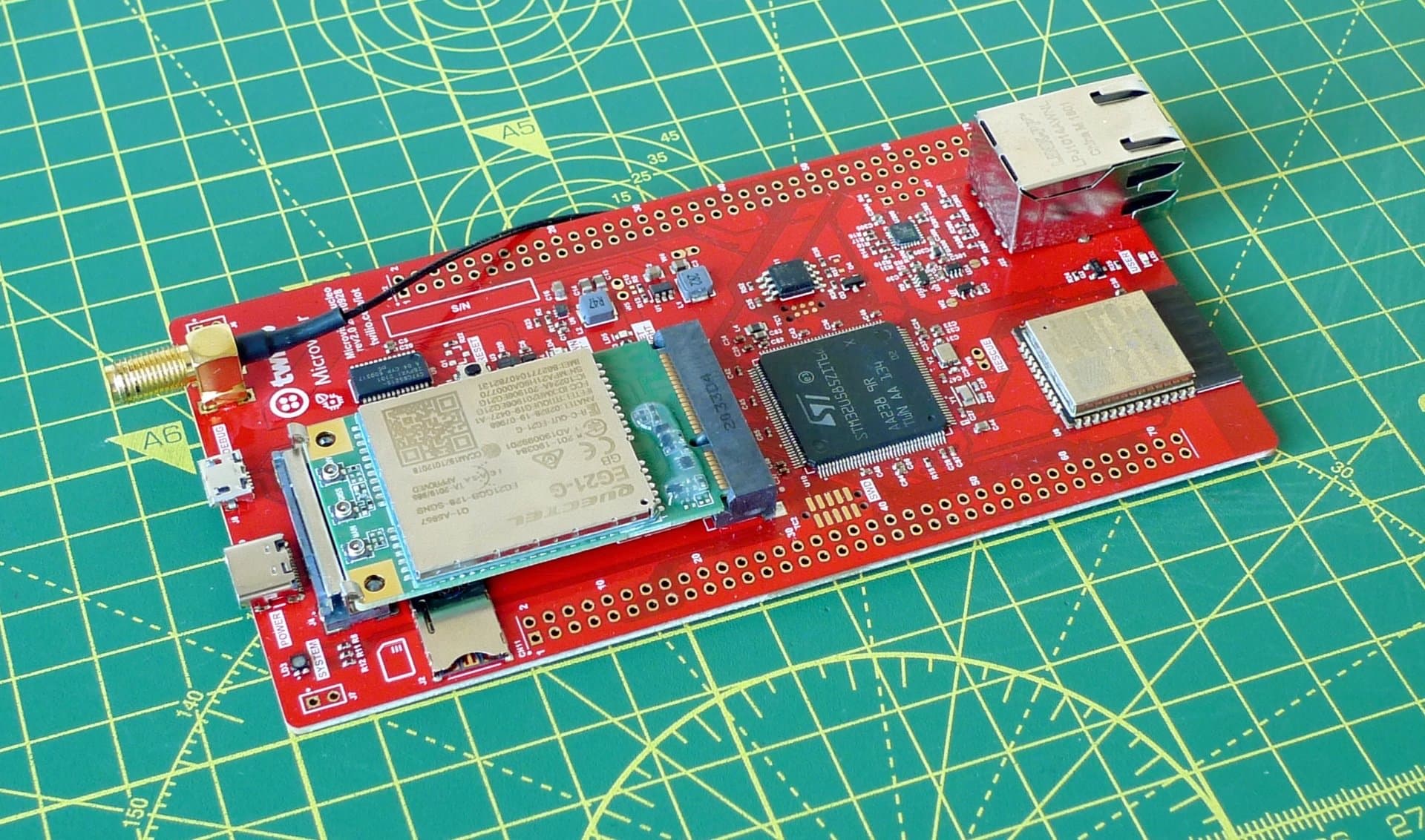

  2. Push the card gently down onto the board until the two restraining clips snap to hold it firmly in place:

    Push the card down until locks in place.

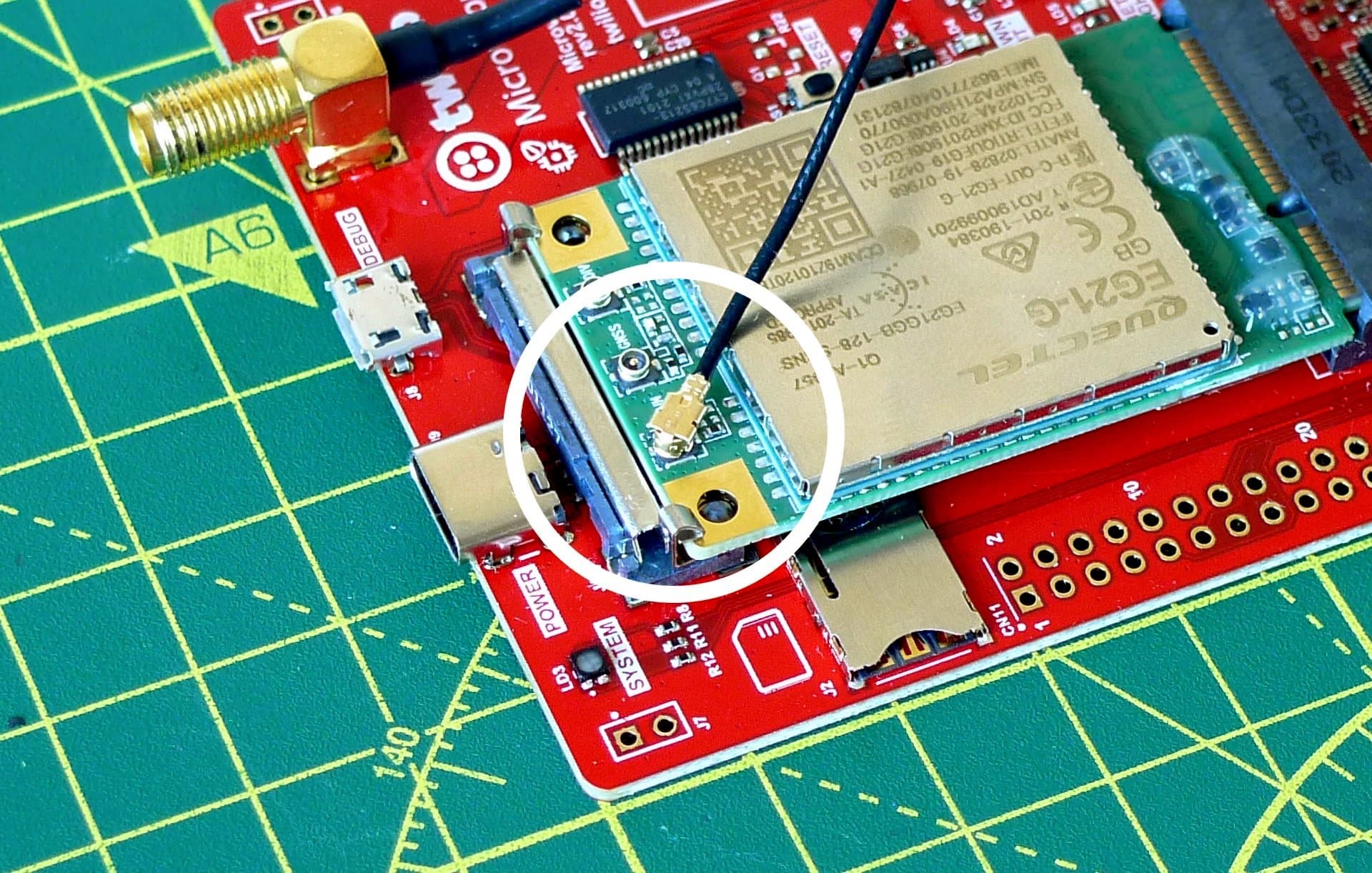

  3. Fit the antenna cable's female u.FL connector to the male connector on the modem card marked MAIN:

    Fix the antenna cable to the cellular modem.

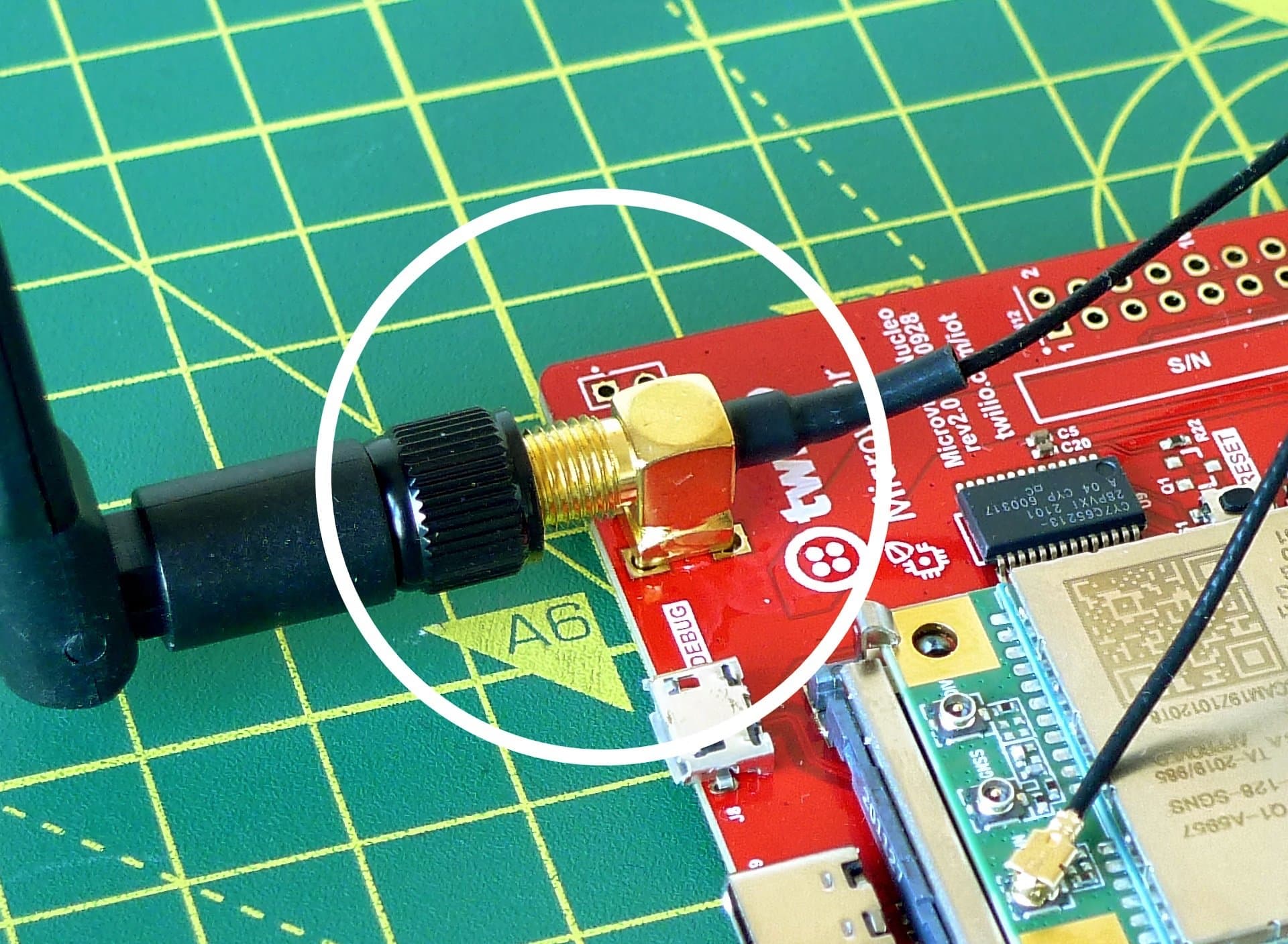

  4. Screw the large antenna onto the board's jack:

    Fit the large antenna.

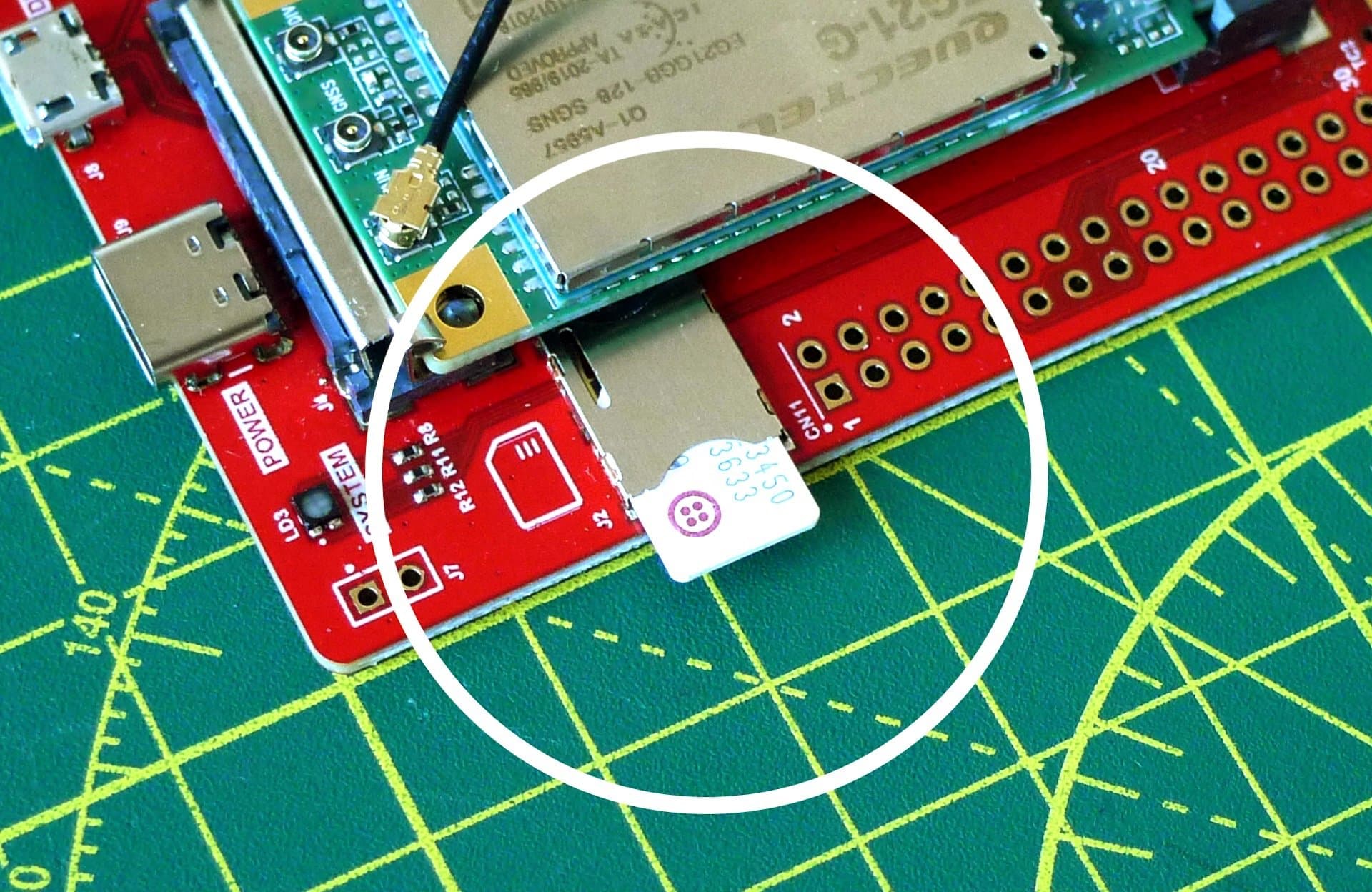

  5. Remove the nano-size SIM card from the Super SIM packaging and slot it into the receptacle on the NDB. The contacts should be face down, and the edge with the notch inserted first. This may have been done for you:

    Slot in the Super SIM.

    See the note below if you are only using WiFi and/or Ethernet.

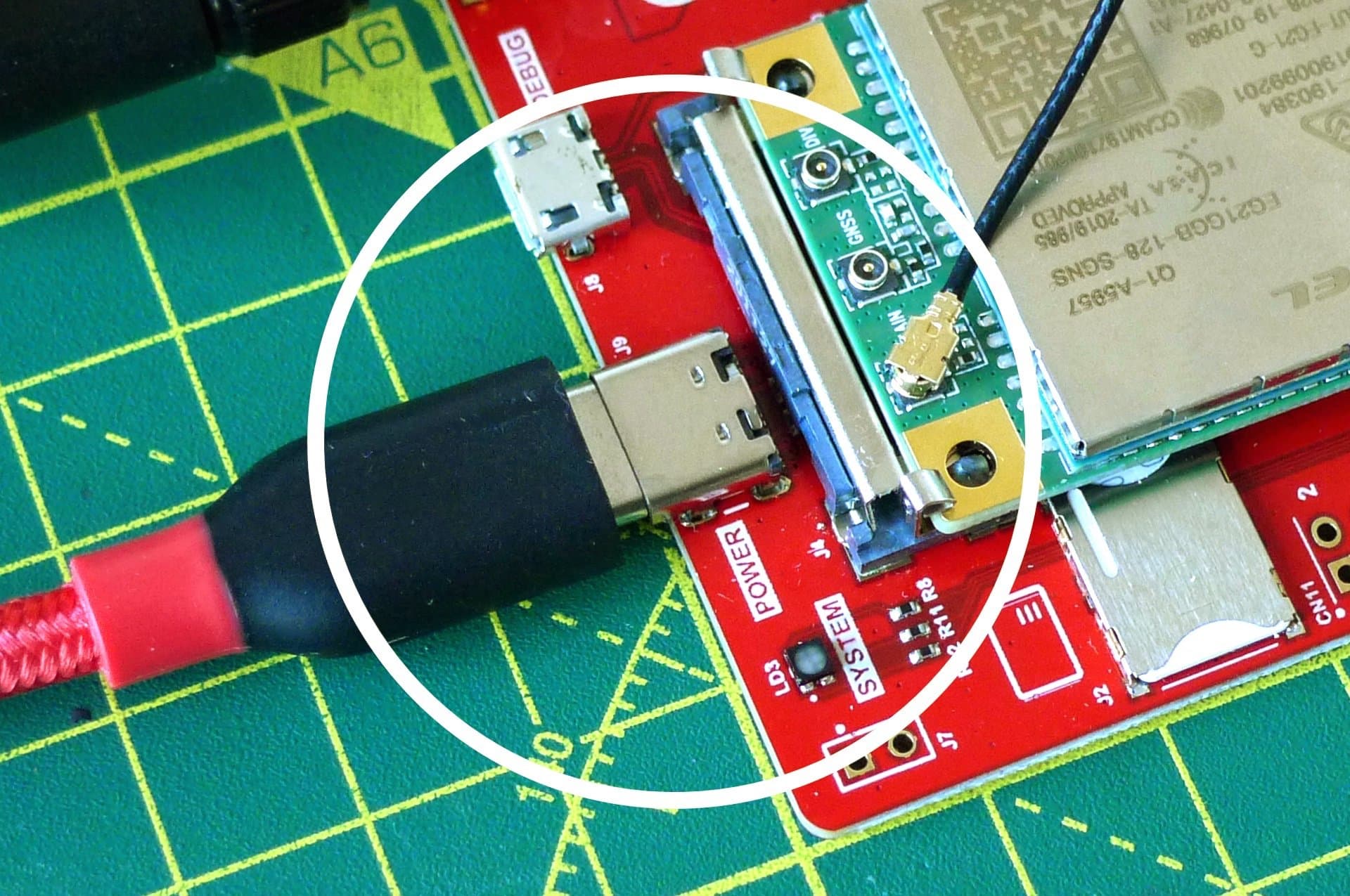

  6. Plug in the AC adapter and use the USB-C cable to power the NDB:

    Power up the board.
(warning)

Warning

Do not try to power the NDB through the Micro USB port marked CONTROL (or DEBUG on older boards), depending on the board revision. This connector is not able to deliver power to the board.

(information)

Info

If you are using the NDB in WiFi or Ethernet mode — you're not using its cellular functionality — you will still need to fit the supplied modem card for the time being. However, you should not install the Super SIM. If a SIM has been fitted into your board for you, please remove it.

(warning)

Warning

On your first power up, if you are connecting via cellular, it can take the modem a significant amount of time — 10 minutes or more — to attach to the network. See below for the signals shown on the NETLIGHT LED.


The Microvisor application development process goes like this. You will use your computer to build new versions of your application. You run each new build through Microvisor's bundle creation tool to generate the file that will be uploaded to the Microvisor cloud from where it will be deployed to the device or devices that you specify, such as your NDB, at a time you choose.

We support Ubuntu 20.04 LTS Linux as the primary Microvisor development environment. While we hope to support other platforms in due course, for now Windows and macOS users will have to choose between interacting with the Microvisor development tools through Docker or from within a virtual machine running Ubuntu.

For Windows 10 and 11, we recommend using Windows Subsystem for Linux 2 (WSL)(link takes you to an external page). You will need Administrator privileges to install WSL.

  1. Open an Administrator-level Powershell or Command Prompt instance.
  2. Run wsl --install -d Ubuntu-20.04 .
  3. Exit from Ubuntu and quit Powershell.
  4. Open the Ubuntu 20.04 LTS shell from your Start menu.
  5. Follow the steps below .

Alternatively, you can use Docker. You can also try native tools, but this is unsupported at this time.

For Mac, we support Docker or, if you're happy not to be supported, you can try native tools.

The first thing to do is set up your computer for Microvisor application development.

1. Install the prerequisites

1-install-the-prerequisites page anchor

Ignore this step if you are using Docker.

1
sudo bash -c 'apt update && apt install -y gcc-arm-none-eabi binutils-arm-none-eabi \
2
build-essential libsecret-1-dev cmake curl git jq wget gdb-multiarch'

2. Install the Twilio CLI

2-install-the-twilio-cli page anchor

Ignore this step if you are using Docker.

1
wget -qO- https://twilio-cli-prod.s3.amazonaws.com/twilio_pub.asc | sudo apt-key add -
2
sudo touch /etc/apt/sources.list.d/twilio.list
3
echo 'deb https://twilio-cli-prod.s3.amazonaws.com/apt/ /' | sudo tee /etc/apt/sources.list.d/twilio.list
4
sudo apt update
5
sudo apt install -y twilio

3. Install the Microvisor plugin

3-install-the-microvisor-plugin page anchor

Ignore this step if you are using Docker.

twilio plugins:install @twilio/plugin-microvisor

Ignore this step if you are using Docker.

Run:

twilio login

You will be asked for your account SID and your account Auth Token, both of which you can call up from the Console(link takes you to an external page) if you don't have them handy. Do keep them nearby — you'll need them in the next section. You will also be prompted to enter a "shorthand identifier", or profile name, which is a local ID for your credentials. Enter your initials or any phrase you prefer.

Run:

twilio profiles:use PROFILE_ID

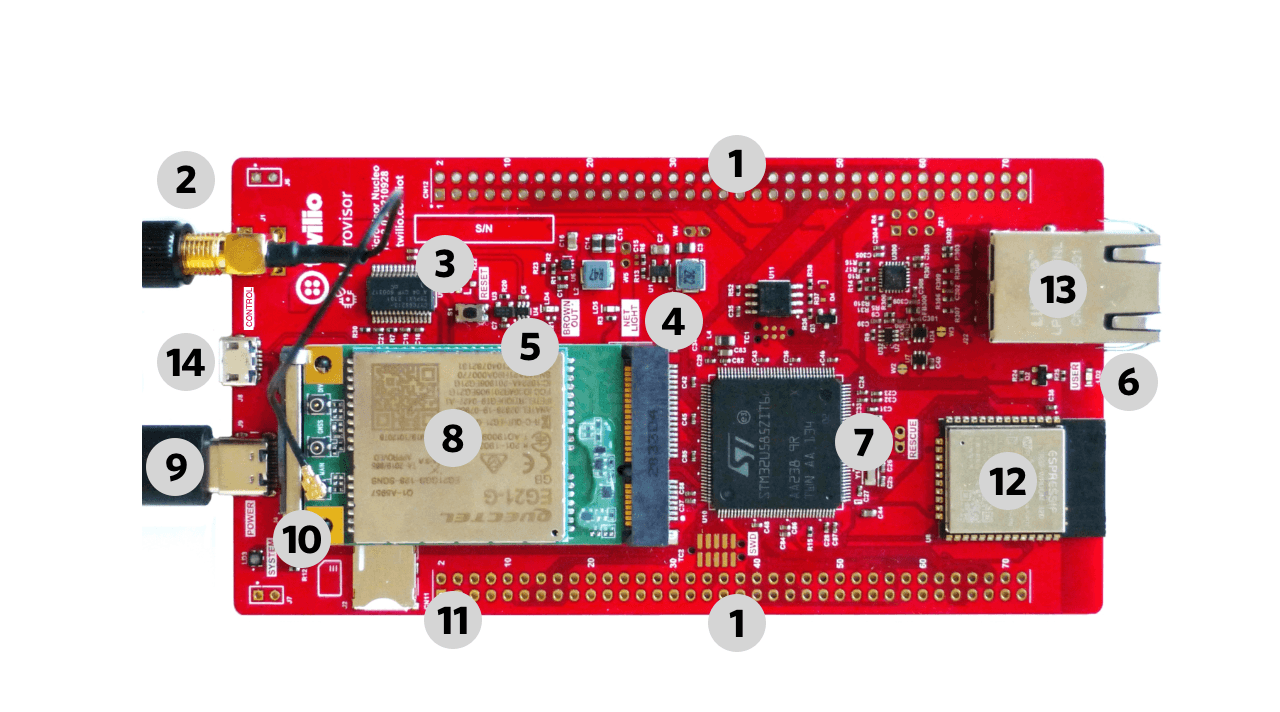

Before you build your first application, let's go on a quick tour of the NDB's key features. Jump ahead if you want to deploy an application straight away.

Microvisor Nucleo Board key features.
  1. GPIO header .
  2. Antenna jack.
  3. Reset button .
  4. Network activity LED .
  5. Power brownout LED .
  6. Application-controllable LED .
  7. STM32U585 with Microvisor.
  8. Quectel EG21-G global cellular modem.
  9. USB-C power input.
  10. System LED
  11. Super SIM.
  12. ESP32 WiFi/BLE module.
  13. RJ-45 Ethernet jack.
  14. UART control port.

The NDB has three LEDs, marked with the labels listed below, to provide you with status feedback.

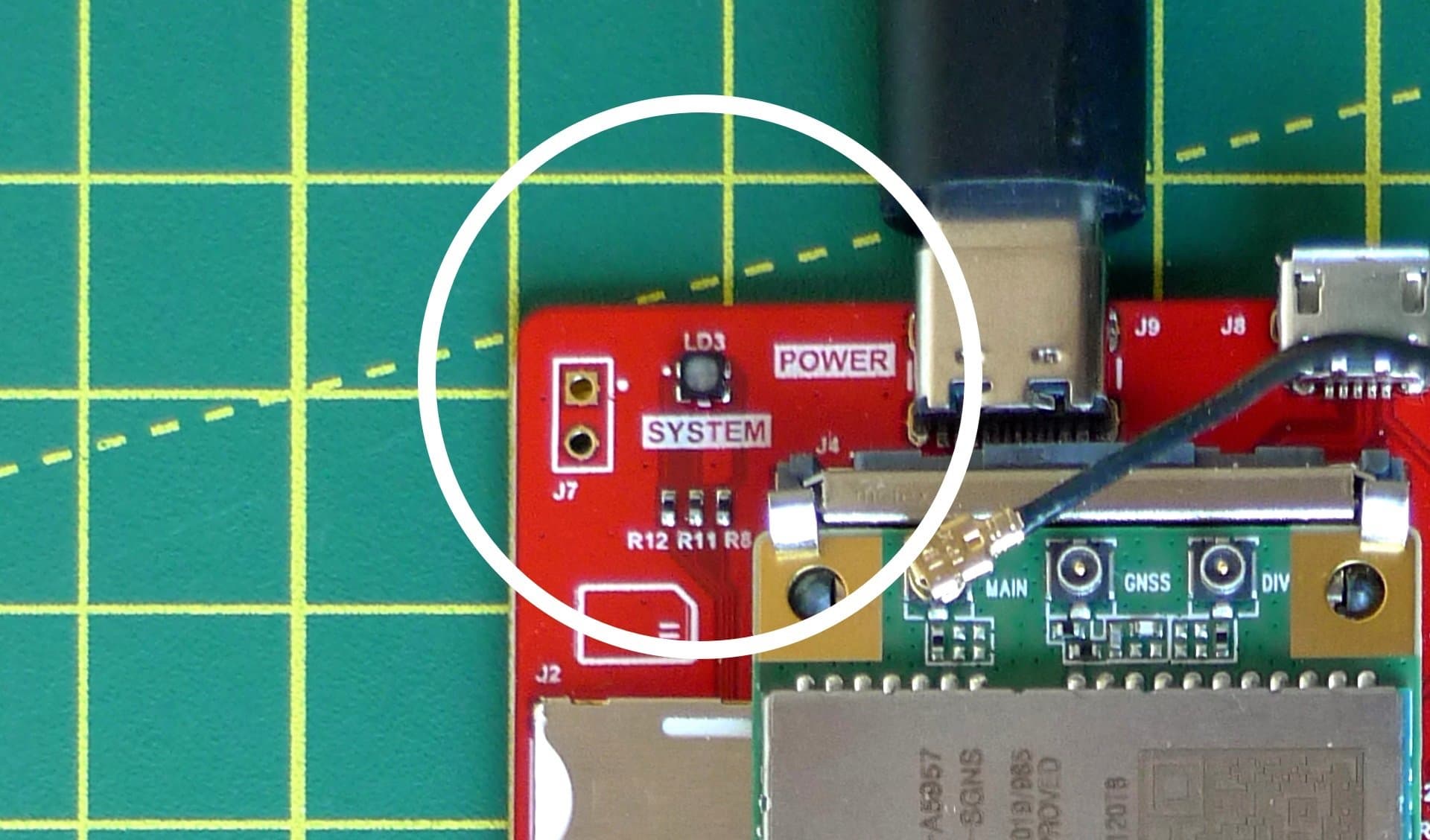

  • SYSTEM — This indicator signals system status using patterns of colors and flashes. For example, it slowly flashes green when the board is connected. The more commonly encountered patterns are shown below.A pattern may take longer to complete than the time Microvisor spends in the indicated state. As soon as it changes state, Microvisor will signal the new state even if it has not yet finished the previous state's pattern. So watch this LED for error or success conditions — a pattern being displayed repeatedly without change — not to observe transient states.

    The SYSTEM LED.

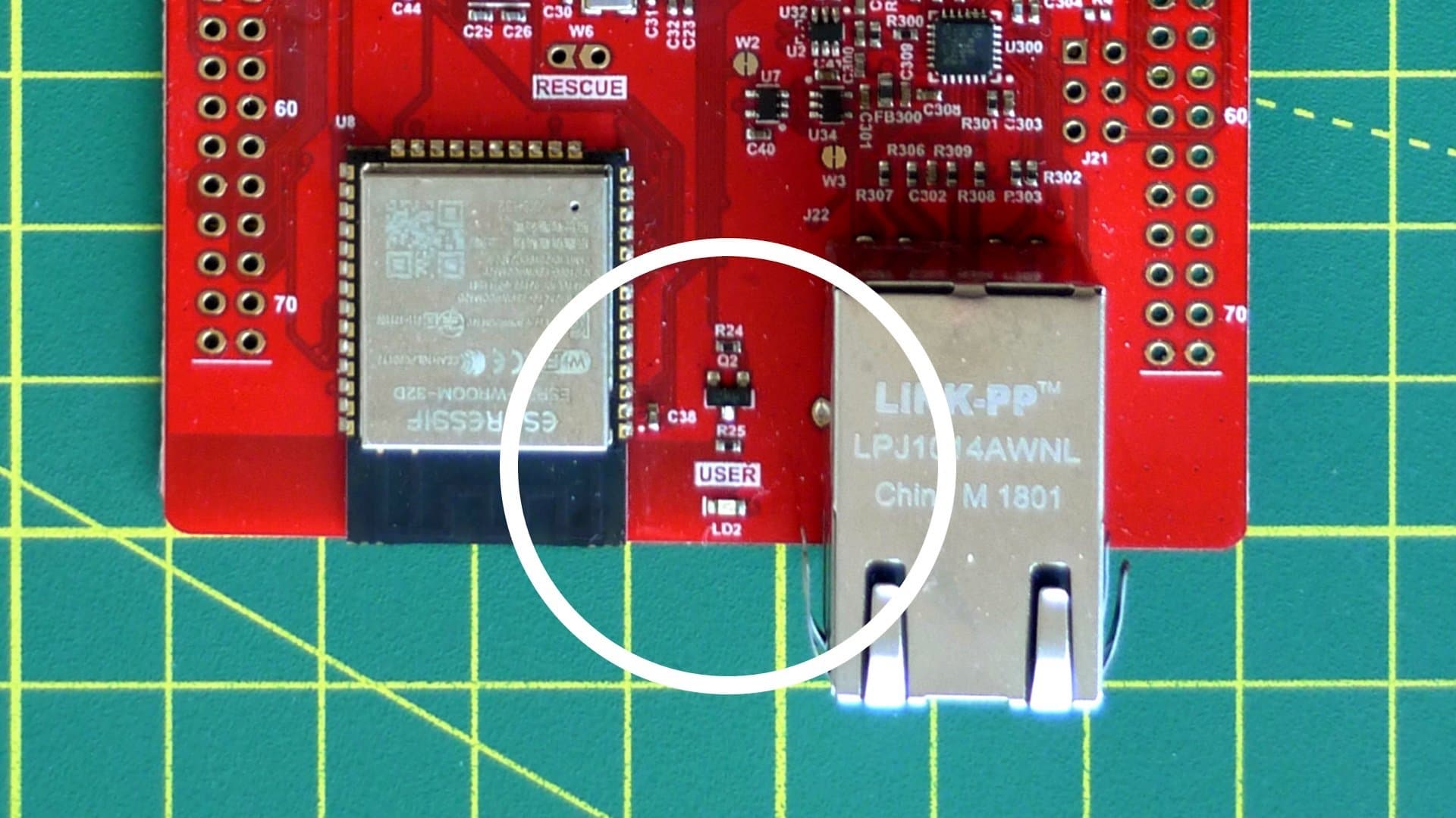

  • USER — This is a GPIO connected single-color LED that's just for you and your application. It is connected to the STM32U585's PA5 pin. Set this pin high to turn on the LED:

    The board's user-controllable LED.
  • NETLIGHT — This is the modem's network activity indicator. You can see it in the picture below. This LED will blink slowly while the device is idling (long flash) or searching for the network (short flash), and blink rapidly during data transfer.

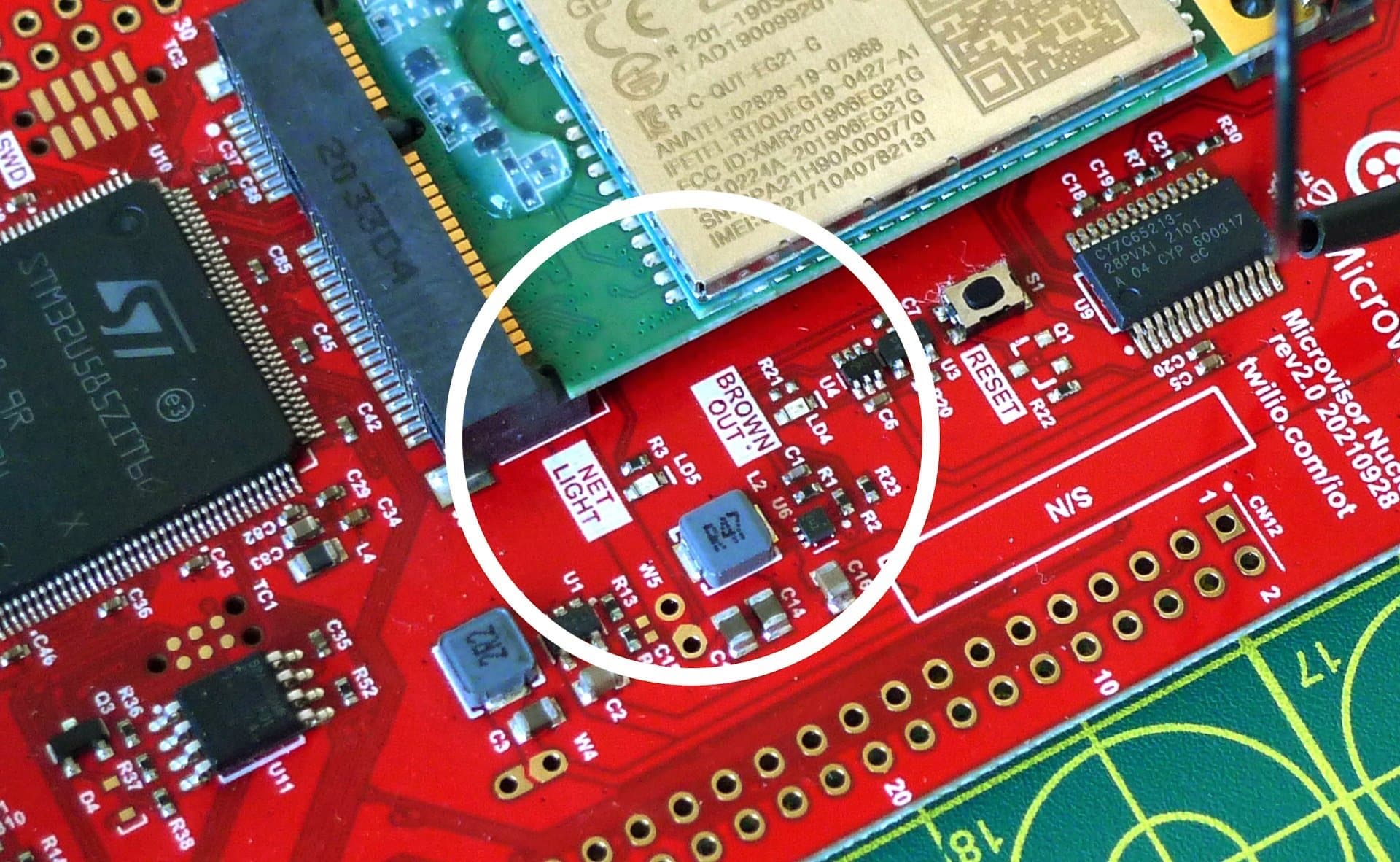

  • BROWNOUT — This will light when the modem's power draw has exceeded the power supplied to the board. This typically happens when your AC adapter is not delivering sufficient power. Make sure your adapter delivers at least 15W (3A at 5V). The adapter and cable supplied with the NDB is rated to meet this peak power draw.

    The BROWNOUT LED.

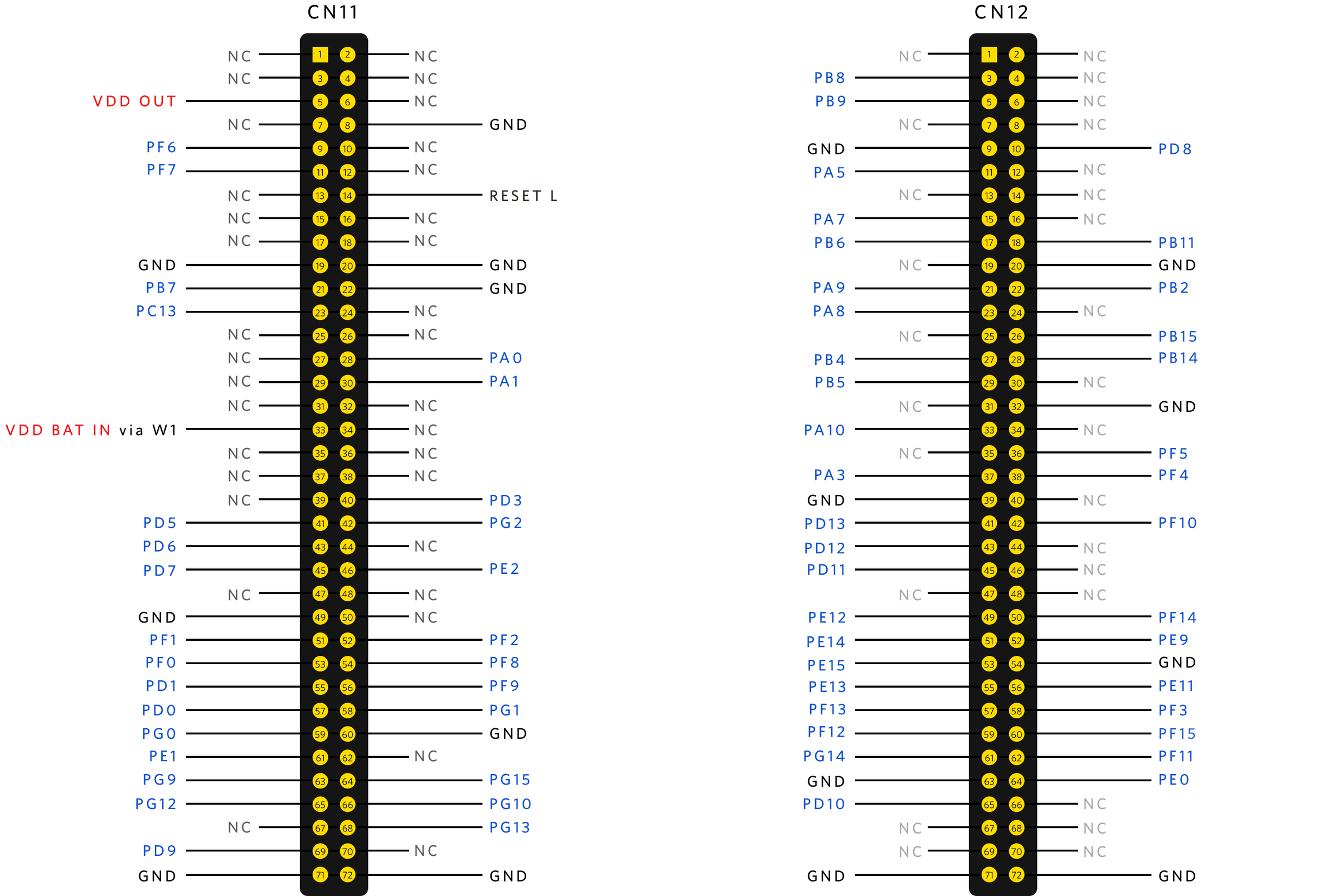

All of the STM32U585's GPIO pins that are available to the user are broken out through the NDB's two headers, marked CN11 and CN12. Any pins not present are reserved for Microvisor's use. Please see the STM32U585 data sheet for the functionality enabled at each available pin. The headers are connected as follows (click on the image for a large view):

The Nucleo Dev Board GPIO pins.

**NC = Not ConnectedCN11 pin 33 is not connected, but bridging W1 will connect it to VDD BAT IN.

We recommend soldering male header pins to the Nucleo. Make sure you choose header pins of 2.54mm pitch in dual-row configuration. These will be available from any good electronics component stockist such as Digikey(link takes you to an external page) or Mouser(link takes you to an external page).

Make sure you order tall, stackable headers if you wish to fit a custom board to the pins. This will be required to stand above the Nucleo's RJ-45 connector.

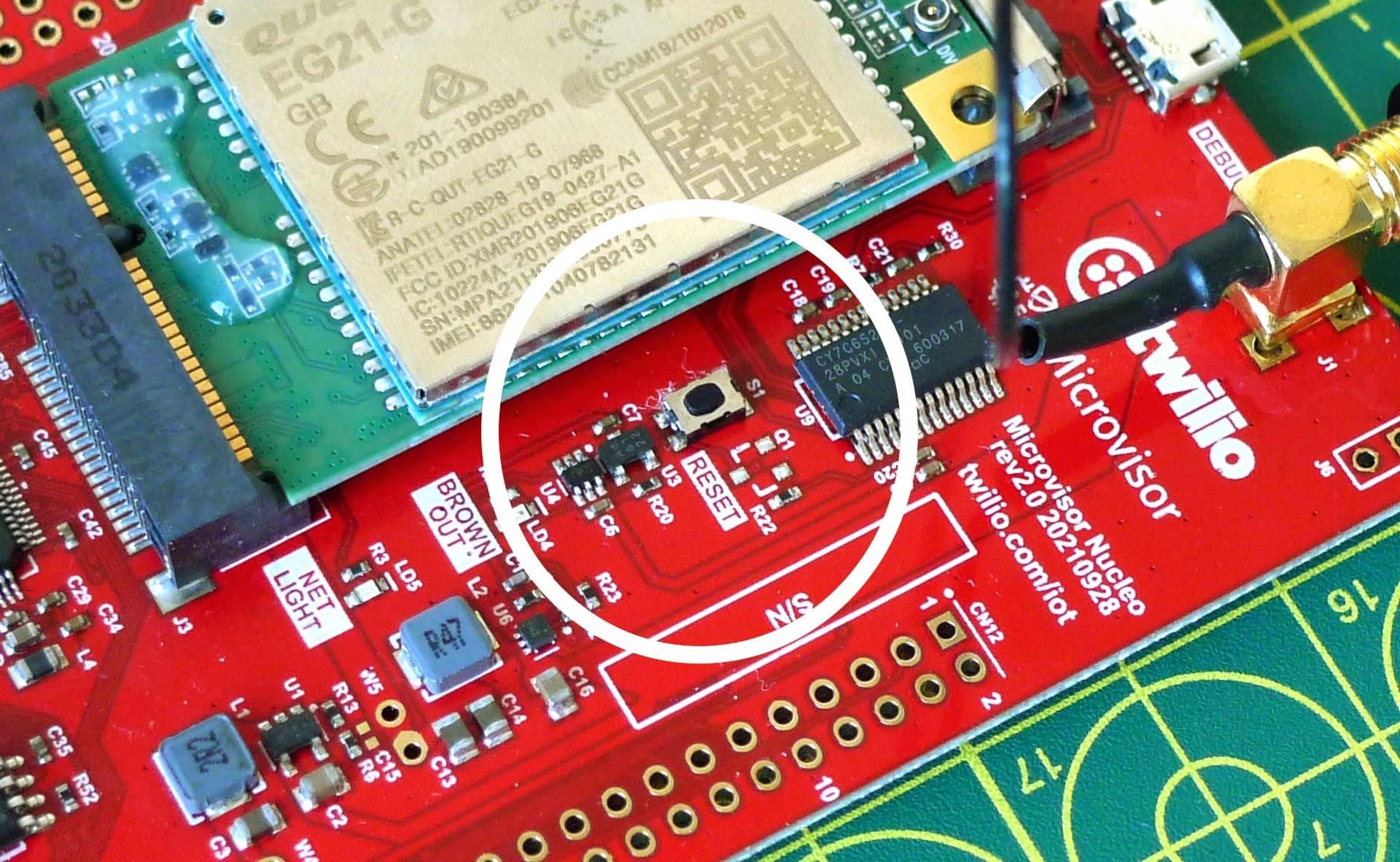

You can manually trigger a device reboot at any time by pushing the RESET button:

The board's RESET button.

Common SYSTEM LED patterns

common-system-led-patterns page anchor

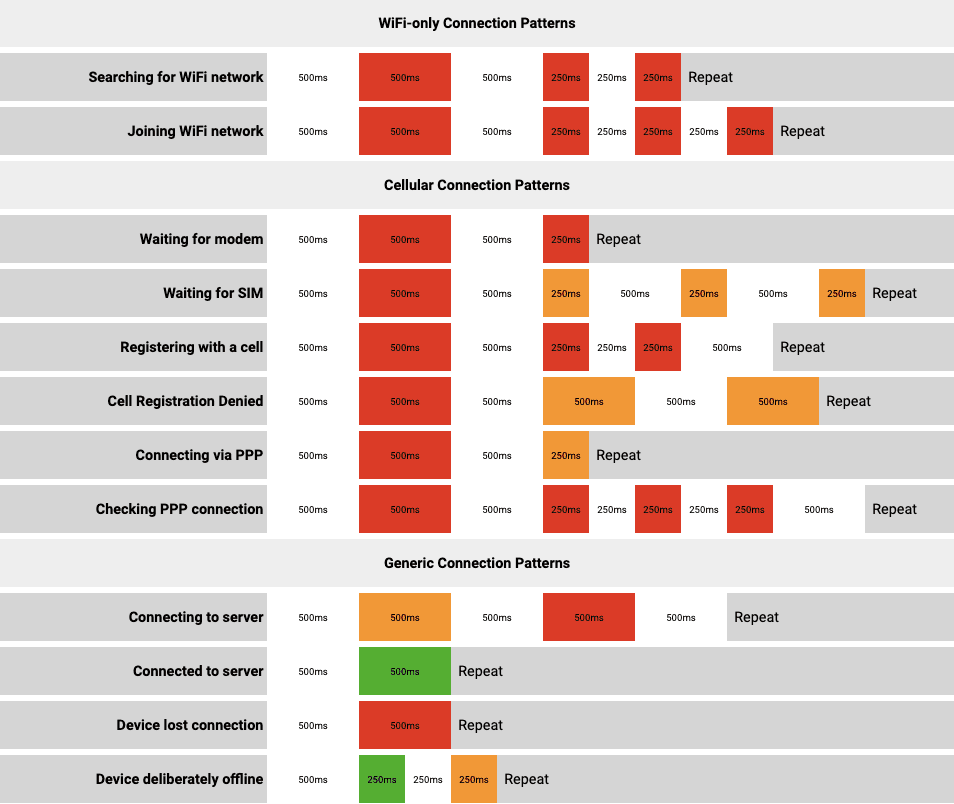

The table below shows you some color and blink patterns that you may see on the SYSTEM LED. The first six of these signal the NDB's progress as it comes online. This usually happens quite quickly so you may not see all of them before you see the steady green blink that indicates the NDB is online. The NETLIGHT LED will blink rapidly.

Microvisor Nucleo Board SYSTEM LED patterns.

If you do not see the even green blink, match the pattern you do see to those listed above. It will tell you how far the NDB progressed and the likely cause of its failure to connect. For example, if you see the Waiting for SIM pattern, you know to check that the board's Super SIM has been inserted correctly. A pattern further down the list might indicate a broken antenna connection.

The NDB incorporates an ESP32 WiFi/BLE module and Ethernet jack. These features can be used by the NDB to connect to the Internet in place of the cellular modem. For more details, please see the NDB connectivity guide.


Let's build and deploy a classic 'Hello, World' application so you can see how you interact with the tools and your newly connected NDB. You'll use our FreeRTOS demo code. It flashes the NDB's USER LED to signal its presence.

1. Download the Microvisor FreeRTOS Demo

1-download-the-microvisor-freertos-demo page anchor

Ignore this step if you are using Docker.

1
git clone --recurse-submodules https://github.com/korewireless/Microvisor-Demo-CMSIS-Freertos.git
2
cd Microvisor-Demo-CMSIS-Freertos

2. Build and bundle the application code

2-build-and-bundle-the-application-code page anchor

Command Line

command-line page anchor
1
cmake -S . -B build
2
cmake --build build

Applications are delivered to the Microvisor cloud in the form of a 'bundle'. This is a zip archive which contains a combination of executable code and data. It also includes a manifest, a signed metadata file which tells Microvisor where to install the code and the data. Build a basic bundle now:

1
twilio microvisor:apps:bundle build/Demo/mv-freertos-cmsis-demo.bin \
2
build/Demo/mv-freertos-cmsis-demo.zip

If you're using Docker, you will need to set up your environment with these variables:

1
export MV_DEVICE_SID=UVxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
2
export TWILIO_ACCOUNT_SID=ACxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
3
export TWILIO_AUTH_TOKEN=xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
1
$env:TWILIO_ACCOUNT_SID="ACxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"
2
$env:TWILIO_AUTH_TOKEN="xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"
3
$env:MV_DEVICE_SID="UVxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"

Replace each xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx with your own values. The first two can be obtained from the Twilio Console account dashboard(link takes you to an external page). The QR code on the back of your board and on the anti-static bag in which it shipped shows your NDB's SID. Scan the code with your mobile phone and a suitable app, and the board's SID is the third /-separated field.

Now create a container with:

1
docker build --build-arg UID=$(id -u) --build-arg GID=$(id -g) \
2
-t microvisor-freertos-image .

Now run the container to build, bundle and upload the Microvisor demo app:

1
docker run -it --rm -v $(pwd)/:/home/mvisor/project/ \
2
--env-file env.list \
3
--name microvisor-freertos microvisor-freertos-image

3. Upload the bundle to the Microvisor cloud

3-upload-the-bundle-to-the-microvisor-cloud page anchor

Ignore this step if you are using Docker.

Upload the generated bundle with this command:

twilio microvisor:apps:create build/Demo/mv-freertos-cmsis-demo.zip

Uploaded bundles are accessed through the Microvisor Apps API, which represents each bundle upload as an App resource. Apps are uniquely identifiable by their SID. This allows you to quickly re-deploy an older version of your code if you need to.

You'll need the new App's SID. It's a 34-character string beginning with KA and it's shown in the output of the above command in the SID column.

(information)

Info

To make it easier to identify a specific upload, give it a unique friendly name:

twilio microvisor:apps:create /path/to/bundle <UNIQUE_NAME>

You can then use the App's name instead of its SID.

4. Get your NDB's SID

4-get-your-ndbs-sid page anchor

Ignore this step if you are using Docker.

Get your NDB's SID. You'll need this to instruct the Microvisor cloud which device to deploy the uploaded bundle to. First, get a list all of your devices:

twilio api:microvisor:v1\:devices:list

This will list your devices — possibly just your NDB at this stage — with their SIDs and, if set, unique names.

(information)

Info

The QR code on the back of your board and on the anti-static bag in which it shipped also contains your NDB's SID. Scan the code with your mobile phone and a suitable app, and the board's SID is the third /-separated field.

5. NDB, meet application

5-ndb-meet-application page anchor

Ensure your NDB is powered up and connected to the Internet: the SYSTEM LED will be slowly blinking green.

Command Line
command-line-2 page anchor

Deploy the code to it. To so, make a Microvisor API request like this:

1
twilio api:microvisor:v1\:devices:update \
2
--sid <YOUR_NDB_SID_FROM_ABOVE> \
3
--target-app <YOUR_APP_SID_OR_UNIQUE_NAME>

Again, you'll need to replace the bracketed values with your own values.

(information)

Info

You can avoid using the bulky SID by giving your device a friendly unique name:

1
twilio api:microvisor:v1\:devices:update \
2
--sid <YOUR_NDB_SID> \
3
--unique-name my_ndb

Use the unique name wherever you're asked to enter a device SID.

There is nothing to do — this is included in the last command you ran.

In the background, the Microvisor cloud will signal the device that an application update is pending, and Microvisor will reboot, reconnect to the Internet, and download your code. After a moment or two, while the NDB connects to the Internet, you'll see the USER LED flash once a second.

Hello, World!

Microvisor supports the relay of logging statements issued by your application code. To view logs from your device, you'll use the Twilio CLI.

twilio microvisor:logs:stream <YOUR_NDB_SID>

Our Docker setup starts logging automatically.

Sit back and watch some messages appear in your terminal. Logging leverages standard Microvisor system calls for application logging.


You have set up your development environment and your Microvisor Development Board. You've run a FreeRTOS-based sample application on the device by creating a bundle, transferring it to the Microvisor cloud, and then deploying it to your board over the air. You have viewed logging information transmitted by your application.

What next? Microvisor now supports remote debugging: controlling running application on your Microvisor device wherever in the world it is located. To try out this powerful development functionality, work through our Microvisor Remote Debugging guide.

Here are some suggestions for further stages of your Microvisor journey.
