Get Started with Super SIM IP Commands and the Raspberry Pi Pico


IP Commands is a new Super SIM feature that allows your cloud to communicate with your IoT devices by exchanging UDP/IP messages. You can use IP Commands to send server-initiated messages from your cloud to your Super SIM-connected devices, and to have the responses directed to the endpoint of your choice. The best part is that you don't actually need to know a device's IP address — Twilio will handle that for you. Nor do you need to maintain a persistent connection between a device and your server.

You can think of IP Commands as a lightweight alternative to using a Virtual Private Network (VPN) to reach a device from your cloud and exchange information.

This information is transferred in the form of User Datagram Protocol (UDP) messages. UDP provides basic, 'fire and forget' data exchange: there's no connection established between sender and receiver — but no guarantee that the message will be delivered. This simplicity makes UDP ideal for lightweight IoT applications: it's a great way to send commands ("change the air con setting to 40C") to a connected device. Such commands might come from your cloud, or from an app running on an end-user's mobile device. Typically, they would be more structured than the colloquial example shown above, but completely flexible: your application, not the transport, defines the command-response interaction.

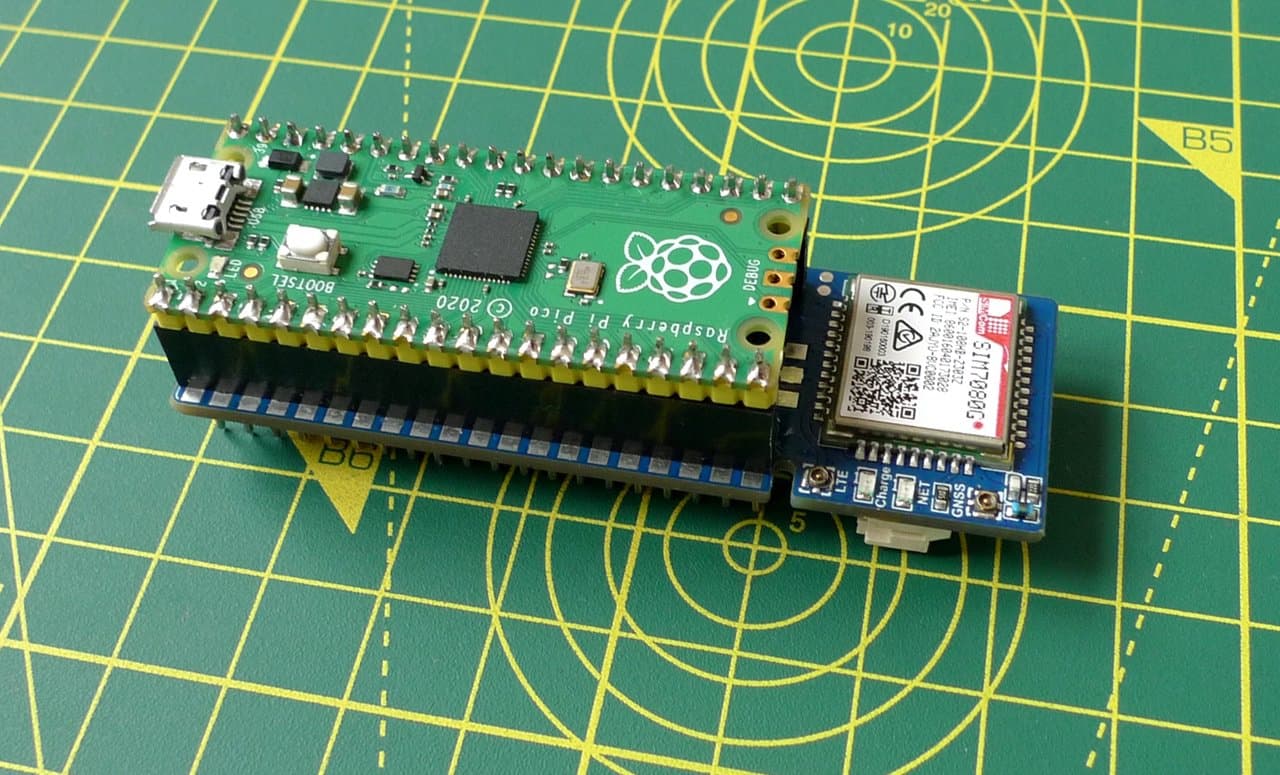

The Raspberry Pico and Waveshare modem board.

To show you how to use Super SIM IP Commands, we're going to make use of the Raspberry Pi Pico microcontroller development board. The Pico is highly programmable. Though it's intended for traditional embedded applications, and therefore supports C/C++ development, it can also be used with MicroPython(link takes you to an external page), a version of the popular language that's been tailored for use with microcontrollers rather than full PCs. This means that anyone who's used Python can quickly begin prototyping their own IoT devices with the Pico and Super SIM.

The Pico's RP2040 microcontroller is available in commercial quantities, so the development work you do can readily form the basis for production devices later.

(warning)

Warning

This guide requires a Twilio account. Sign up here now if you don't have one(link takes you to an external page). It also requires a configured Super SIM. If you haven't set up your Super SIM in the Console(link takes you to an external page), please do so now. Our Super SIM First Steps guide has extra help if you need it.


Send IP Commands to the device

send-ip-commands-to-the-device page anchor

1. Gather your components

1-gather-your-components page anchor

To complete this tutorial, you will need:

You will also need to install and configure Twilio's CLI tool for your platform.

(warning)

Warning

This tutorial assumes your Pico has MicroPython installed. Out of the box this is not the case, but our tutorial Get Started with Super SIM SMS Commands and the Raspberry Pi Pico will show you how to set up your device and to prepare the other components for use. It will also show you the software you need on your computer. If this is your first Super SIM Raspberry Pi Pico tutorial, hop over there now to get set up. Come back here when you've completed Step 4 .

If you've already finished the Get Started tutorial, you're ready to continue here.

2. Enter some Python code

2-enter-some-python-code page anchor

At this point, you should have your Pico ready to go, fitted to the Waveshare module, and connected up like this:

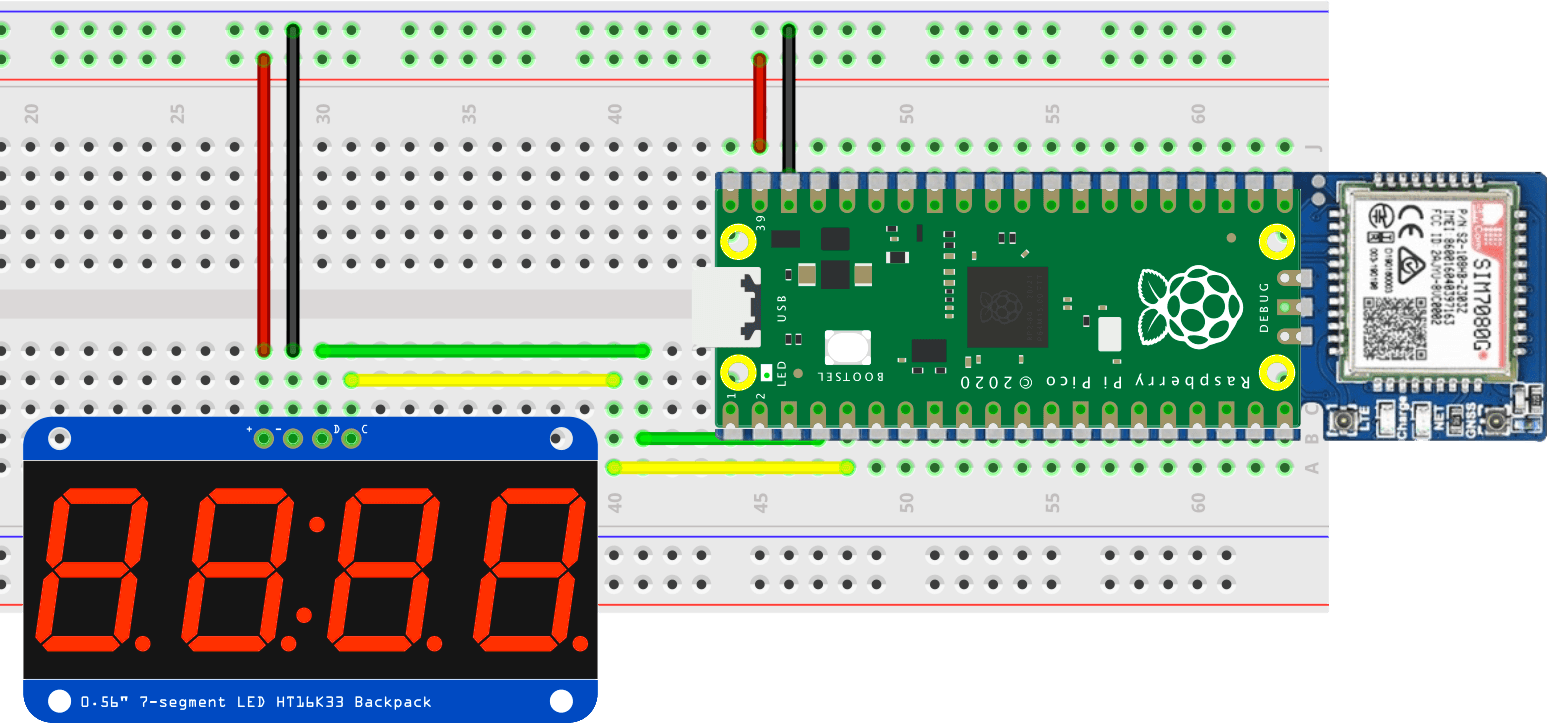

The development hardware.

You should have Minicom, or a similar terminal emulator, installed on your computer.

Run Minicom. Now hit Ctrl-C to break to the Python REPL. You won't use the REPL directly, but it provides a way to enter large blocks of MicroPython code. Hit Ctrl-E. This tells MicroPython to accept a full Python program pasted in. Click on the button at the top right of the following code to copy it and then paste it into Minicom. The copy button will appear when you mouse over the code. When you've pasted the code, hit Ctrl-D.

(information)

Info

You can find the a complete listing of the code, including all subsequent additions, at our public GitHub repo(link takes you to an external page).

If you've copied the code, you can click to jump down the page.

1
import sys
2
from machine import UART, Pin, I2C
3
from utime import ticks_ms, sleep
4
5
# Functions
6
7
'''
8
Send an AT command - return True if we got an expected
9
response ('back'), otherwise False
10
'''
11
def send_at(cmd, back="OK", timeout=500):
12
# Send the command and get the response (until timeout)
13
buffer = send_at_get_resp(cmd, timeout)
14
if len(buffer) > 0: return (back in buffer)
15
return False
16
17
'''
18
Send an AT command - just return the response
19
'''
20
def send_at_get_resp(cmd, timeout=500):
21
# Send the AT command
22
modem.write((cmd + "\r\n").encode())
23
24
# Read and return the response (until timeout)
25
return read_buffer(timeout)
26
27
'''
28
Read in the buffer by sampling the UART until timeout
29
'''
30
def read_buffer(timeout):
31
buffer = bytes()
32
now = ticks_ms()
33
while (ticks_ms() - now) < timeout and len(buffer) < 1025:
34
if modem.any():
35
buffer += modem.read(1)
36
return buffer.decode()
37
38
'''
39
Module startup detection
40
Send a command to see if the modem is powered up
41
'''
42
def boot_modem():
43
state = False
44
count = 0
45
while count < 20:
46
if send_at("ATE1"):
47
print("The modem is ready")
48
return True
49
if not state:
50
power_module()
51
state = True
52
sleep(4)
53
count += 1
54
return False
55
56
'''
57
Power the module on/off
58
'''
59
def power_module():
60
print("Powering the modem")
61
pwr_key = Pin(14, Pin.OUT)
62
pwr_key.value(1)
63
sleep(1.5)
64
pwr_key.value(0)
65
66
'''
67
Check we are attached
68
'''
69
def check_network():
70
is_connected = False
71
response = send_at_get_resp("AT+COPS?", 1000)
72
line = split_msg(response, 1)
73
if "+COPS:" in line:
74
is_connected = (line.find(",") != -1)
75
if is_connected: print("Network information:", line)
76
return is_connected
77
78
'''
79
Attach to the network
80
'''
81
def configure_modem():
82
# AT commands can be sent together, not one at a time.
83
# Set the error reporting level, set SMS text mode, delete left-over SMS
84
# select LTE-only mode, select Cat-M only mode, set the APN to 'super' for Super SIM
85
send_at("AT+CMEE=2;+CMGF=1;+CMGD=,4;+CNMP=38;+CMNB=1;+CGDCONT=1,\"IP\",\"super\"")
86
# Set SSL version, SSL no verify, set HTTPS request parameters
87
send_at("AT+CSSLCFG=\"sslversion\",1,3;+SHSSL=1,\"\";+SHCONF=\"BODYLEN\",1024;+SHCONF=\"HEADERLEN\",350")
88
print("Modem configured for Cat-M and Super SIM")
89
90
'''
91
Open/close a data connection to the server
92
'''
93
def open_data_conn():
94
# Activate a data connection using PDP 0,
95
# but first check it's not already open
96
response = send_at_get_resp("AT+CNACT?")
97
line = split_msg(response, 1)
98
status = get_field_value(line, 1)
99
100
if status == "0":
101
# There's no active data connection so start one up
102
success = send_at("AT+CNACT=0,1", "ACTIVE", 2000)
103
elif status in ("1", "2"):
104
# Active or operating data connection
105
success = True
106
107
print("Data connection", "active" if success else "inactive")
108
return success
109
110
def close_data_conn():
111
# Just close the connection down
112
send_at("AT+CNACT=0,0")
113
print("Data connection inactive")
114
115
'''
116
Start a UDP session
117
'''
118
def start_udp_session():
119
send_at("AT+CASERVER=0,0,\"UDP\",6969")
120
121
'''
122
Split a response from the modem into separate lines,
123
removing empty lines and returning what's left or,
124
if 'want_line' has a non-default value, return that one line
125
'''
126
def split_msg(msg, want_line=999):
127
lines = msg.split("\r\n")
128
results = []
129
for i in range(0, len(lines)):
130
if i == want_line:
131
return lines[i]
132
if len(lines[i]) > 0:
133
results.append(lines[i])
134
return results
135
136
'''
137
Extract a comma-separated field value from a line
138
'''
139
def get_field_value(line, field_num):
140
parts = line.split(",")
141
if len(parts) > field_num:
142
return parts[field_num]
143
return ""
144
145
'''
146
Flash the Pico LED
147
'''
148
def led_blink(blinks):
149
for i in range(0, blinks):
150
led_off()
151
time.sleep(0.25)
152
led_on()
153
time.sleep(0.25)
154
155
def led_on():
156
led.value(1)
157
158
def led_off():
159
led.value(0)
160
161
'''
162
Listen for IP commands
163
'''
164
def listen():
165
if open_data_conn():
166
start_udp_session()
167
print("Listening for IP commands...")
168
169
# Loop to listen for messages
170
while True:
171
# Did we receive a Unsolicited Response Code (URC)?
172
buffer = read_buffer(5000)
173
if len(buffer) > 0:
174
lines = split_msg(buffer)
175
for line in lines:
176
if "+CANEW:" in line:
177
# We have a UDP packet, so get the data
178
resp = send_at_get_resp("AT+CARECV=0,100")
179
parts = split_msg(resp)
180
if len(parts) > 1:
181
# Split at the comma
182
item = parts[1]
183
cmd_start = item.find(",")
184
if cmd_start != -1:
185
cmd = item[cmd_start + 1:]
186
print("Command received:",cmd)
187
break
188
else:
189
print("ERROR -- could not open data connection")
190
191
'''
192
Runtime start
193
'''
194
# Set up the modem UART
195
modem = UART(0, 115200)
196
197
# Set the LED and turn it off
198
led = Pin(25, Pin.OUT)
199
led_off()
200
201
# Start the modem
202
if boot_modem():
203
configure_modem()
204
205
# Check we're attached
206
state = True
207
print("Attaching to cellular")
208
while not check_network():
209
if state:
210
led_on()
211
else:
212
led_off()
213
state = not state
214
215
# Light the LED
216
led_on()
217
listen()
218
else:
219
# Error! Blink LED 5 times
220
led_blink(5)
221
led_off()

This is the basis of the code you'll work on through the remainder of the guide, so you should also paste it into a text editor where you can make the subsequent changes and additions, and then copy everything at each stage over to the Pico as described above.

MicroPython will check the code and, if it's free of syntax errors, run it. You'll see status messages appear in Minicom as the code boots the cellular module and configures it, and then connects to the network. You know you're ready for the next step when you see the message Listening for IP commands... in Minicom.

These states are also reflected in the Pico's green LED. It will be off initially, but blink slowly while the device is attempting to attach to the cellular network. When the Pico has done so, the LED will stay lit.

If the LED blinks rapidly five times, the Pico could not start the module. Check your soldering and that you have connected the Pico to the module correctly.

3. Send an IP Command to the device

3-send-an-ip-command-to-the-device page anchor
  1. Open a second terminal or a new terminal tab on your computer.
  2. Send a command using the twilio tool as follows:

    1
    twilio api:supersim:v1:ip-commands:create \
    2
    --sim "<YOUR_SIM_NAME_OR_SID>" \
    3
    --payload BLUE \
    4
    --device-port 6969


    Copy and paste the twilio command to the command line (or to a text editor first) and edit it to fill in the identifier of the Super SIM you're using (you can get this from the Console(link takes you to an external page) if you don't have it handy), and your account credentials (also available from the Console(link takes you to an external page)).

The IP command to be sent is the value of the --payload parameter.

The response from Twilio, posted to the terminal, will look something like this:

1
SID Status Date Created
2
HGxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx queued Jan 26 2022 11:11:50 GMT+0000

As you can see, the message's status is queued: it's in Twilio's message pipeline waiting to be sent. When the IP Command leaves the Twilio Mobile Core for the network the device is attached to, its status will become sent. Later on, you'll use a webhook, which you'll set up in the next section, to receive notifications about message status changes as they occur. For details of the possible status values you may see, take a look at the API documentation.

(information)

Info

If you prefer to use a different port number, just change the value of --device-port in the twilio command above and in the Python code — it's set in the function start_udp_session().

4. See the IP Command's effect on the device

4-see-the-ip-commands-effect-on-the-device page anchor

Look at Minicom's output. Has the Pico reported that it received the command BLUE?

In a real-world application the IP Command would come from your server, not be sent manually, and your device-side application would parse any that arrive and perform actions accordingly. However, the demo gives you a picture of the flow. IP Commands also supports binary data. To send information in this form, you would add the --payload-type parameter to the message-send code and set its value to "binary":

1
twilio api:supersim:v1:ip-commands:create \
2
--sim "<YOUR_SIM_NAME_OR_SID>" \
3
--payload BLUE \
4
--payload-type binary \
5
--device-port 6969

Logging a received command is a good start, but it's not particularly exciting. Let's make use of the four-digit display so show some values in bold color.

The display needs code to drive it. Rather than include it all here, just grab the code you need from this public GitHub repo(link takes you to an external page). You want the contents of two files. Click the links below to view the raw code in your browser, then copy and paste each one into your text editor, right below the import statements at the top.

With the second file, make sure you copy only the class declaration — ignore the first two lines above it (starting # Import the base class...).

Now add the following function right after the existing listen() function:

1
def process_cmd(line):
2
cmd = line
3
val = ""
4
val_start = line.find("=")
5
if val_start != -1:
6
val = line[val_start + 1:]
7
cmd = line[:val_start]
8
cmd = cmd.upper()
9
if cmd == "NUM" and len(val) < 5:
10
process_command_num(val)
11
else:
12
print("Command not recognized")
13
14
'''
15
Display the decimal value n after extracting n from the command string
16
'''
17
def process_command_num(value):
18
print("Setting",value,"on the LED")
19
try:
20
# Extract the decimal value (string) from 'msg' and convert
21
# to a hex integer for easy presentation of decimal digits
22
hex_value = int(value, 16)
23
display.set_number((hex_value & 0xF000) >> 12, 0)
24
display.set_number((hex_value & 0x0F00) >> 8, 1)
25
display.set_number((hex_value & 0x00F0) >> 4, 2)
26
display.set_number((hex_value & 0x000F), 3).draw()
27
except:
28
print("Bad value:",value)

Add this line to the listen() function, right after print("Command received:",cmd):

process_cmd(cmd)

Finally, add the following lines after the # Setup the modem UART block:

1
# Set up I2C and the display
2
i2c = I2C(1, scl=Pin(3), sda=Pin(2))
3
display = HT16K33Segment(i2c)
4
display.set_brightness(2)
5
display.clear().draw()

Copy all the new code from your text editor and paste it to the Pico in the usual way.

Now send a slightly different command via the IP Commands API:

1
twilio api:supersim:v1:ip-commands:create \
2
--sim "<YOUR_SIM_NAME_OR_SID>" \
3
--payload "NUM=1234" \
4
--device-port 6969

Again, you'll need to do this in a separate terminal tab or window, and replace the <...> sections with your own data.

After a moment or two you should see 1234 appear on the LED. If it doesn't appear after a short time, check you have the LED wired to the Pico correctly — take a look at the wiring diagram. If you see Setting 1234 on the LED in Minicom, you know the command was received. If not, did you enter the command above correctly? Perhaps you mis-typed the payload value. You'll see an error message in Minicom in this case.

Now it's time to make the conversation two way.


Receive IP Commands from the device

receive-ip-commands-from-the-device page anchor

The IP Commands API provides a specific IP address, 100.60.0.1, to which all IP Commands, from every device should be sent. Twilio uses a little bit of magic to streamline the relay of your messages to your cloud. How does it know where to send them? You specify a webhook address.

Super SIMs are organized into Fleets: groups of SIMs that have common settings, such as which networks they are able to connect to and whether they can make use of certain cellular services. Fleets are represented in the Super SIM API by Fleet resources, and IP Commands adds a property to each Fleet resource in which you can store your IP Commands webhook address.

So before we can send a message, we need to set up a webhook target URL and add that to your Super SIM's Fleet.

1. Set up a webhook target

1-set-up-a-webhook-target page anchor

Beeceptor(link takes you to an external page) is a handy service for testing webhooks. It's designed for developing and testing APIs of your own, and offers free mock servers — virtual endpoints that can receive webhook calls. Let's set one up to receive messages from the device.

  1. In a web browser tab, go to Beeceptor(link takes you to an external page) .
  2. Enter an endpoint name and click Create Endpoint :
  3. On the screen that appears next, click on the upper of the two clipboard icons to copy the endpoint URL:
  4. Keep the tab open.

2. Update your Super SIM's Fleet

2-update-your-super-sims-fleet page anchor

Now you update your Super SIM's Fleet to add an IP Commands webhook. You can do this with the API, but we'll use the Console for this demo.

  1. Open a second web browser tab and log into the Twilio Console(link takes you to an external page) .
  2. Go to IoT > Super SIM > Fleets and select the Fleet containing the Super SIM you are using.
  3. Scroll down to IP Commands Callback URL and paste in your webhook URL from the previous section. By default, webhooks are triggered with a POST request. Leave it unchanged for now, but if you need to use another method for your own application, you can change it later.
  4. Click Save .
  5. Close the tab if you like.

3. Update the application

3-update-the-application page anchor

To add message sending to the device code, you can add following function after all the other function definitions:

1
def send_data(data_string):
2
data_length = len(data_string)
3
if send_at("AT+CASEND=0," + str(data_length), ">"):
4
# '>' is the prompt sent by the modem to signal that
5
# it's waiting to receive the message text.
6
resp = send_at_get_resp(data_string + chr(26))

Now add these two lines into the function process_cmd(), right after process_command_num(val):

1
elif cmd == "SEND":
2
send_data("We can\'t wait to see what you build!")

Finally, add this line to the end of the function start_udp_session():

send_at("AT+CACFG=\"REMOTEADDR\",0,100.64.0.1,6969")

Save the file and copy it across to the Pico.

Let's quickly take a look at that last addition as it's key. The AT command +CACFG is a Simcom-only command that performs a specific configuration option. That option is "REMOTEADDR" — it sets the remote IP address all future UDP messages will be transmitted to, at least until the value is changed.

Which address do we apply? 100.64.0.1, the third parameter passed with the command. This is the standard IP Commands input address. The last parameter, 6969, is the local port number.

4. Send an IP Command to send a message

4-send-an-ip-command-to-send-a-message page anchor

Send a new command, SEND, via different command via the IP Commands API:

1
twilio api:supersim:v1:ip-commands:create \
2
--sim "<YOUR_SIM_NAME_OR_SID>" \
3
--payload SEND \
4
--device-port 6969

Jump back to the Beeceptor tab in the browser. You should see — or will shortly see — the endpoint has received a POST request. Click on it to see the request body, then on the JSON icon, {:}, to view the data more clearly.

Unlike messages sent to the device, which can be text or binary, messages that are sent from the device always arrive in binary form. The string sent as a result of your SEND command has been base64 encoded, so it'll need decoding before you can read it. Look for the line beginning Payload= and copy the characters that appear after it, up until the end of the line. It'll look something like this:

bm90IGEgcmVhbCBtZXNzYWdlCg==

Switch to a spare terminal and enter:

echo <BASE64_ENCODED_STRING> | base64 -d

making sure you paste the text you copied between the echo and the | symbol as indicated. You'll be presented with the message in English:

We can't wait to see what you build!

Monitor IP Command transmission

monitor-ip-command-transmission page anchor

The webhook URL you just put in place was set up to receive IP Commands from the device. You can also use it in a tutorial context for monitoring messages being sent to the device. Use the same technique you applied in the Send IP Commands to the device section, above, but this time add the following extra command to the twilio call: --callback-url followed by a space and then your Beeceptor endpoint.

1
twilio api:supersim:v1:ip-commands:create \
2
--sim "<YOUR_SIM_NAME_OR_SID>" \
3
--payload SEND \
4
--device-port 6969
5
--callback-url <YOUR_WEBHOOK_URL>

Now you'll receive a series of notification messages as the IP Command's status moves from queued to sent. For details of the possible status values you may see, take a look at the API documentation.


You've set up a Raspberry Pi Pico and Simcom SIM7080 cellular module to send and receive UDP messages over a data connection, then you've actually sent those messages through Twilio Super SIM's IP Commands API.

You can try sending some alternative messages, including some binary data.

Try using IP Commands to toggle GPIO pins so the Pico can begin to control things. Create a web page to call the API and trigger the commands.

IP Command Resources are persisted for 30 days, so you can check your send and receive histories at any time. For example, a GET request made to https://supersim.twilio.com/v1/IpCommands will fetch all existing resources for inspection. If you have the SID of a specific Command's resource, you can add it as a path value to the endpoint above. Try it now.

The next stage, of course, is to build a device-side app that listens for a variety of commands, parses them and triggers actions accordingly. You may also want to create a server app that's able to request information from devices: it sends a request command which causes the device to send a second, data-bearing message back. Or you might code up a mobile app that uses IP Commands to control the device remotely.

We can't wait to see what you build with Super SIM IP Commands!

Need some help?

Terms of service

Copyright © 2024 Twilio Inc.
